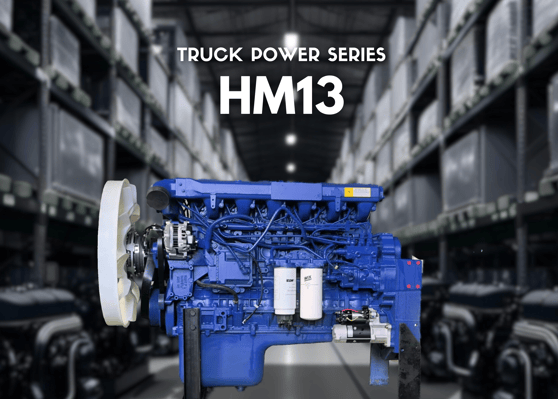

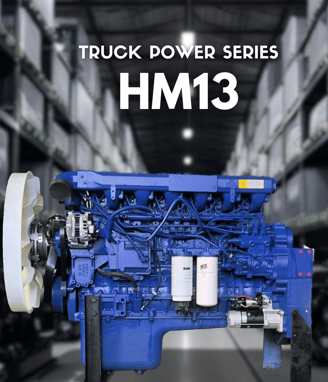

Truck Engine Series

HM13

Truck Engine Series

HM13

发 动 机 型 号 / Engine model HM13 .500 HM13 .530

适 配 范 围 / Scope of adaptation 卡 车 / Truck

发 动 机 形 式 / Engine type 直列 、 水冷 、 四冲程 、 直喷/ In line ,water- cooled ,four stroke , direct injection

进 气 方 式 /Air inlet mode 增压中冷 / TCL

额 定 转 速 / Rated- speed 1900rpm 2100rpm

额 定 功 率 / Rated- power 367kw 390kw

最大马力/Maximum horsepower 500h.p 530h.p

最 大 扭 矩 /Max torque 2400N. m 2550N. m

最 大 扭 矩 转 速 / Speed at maximum torque 950-1400rpm

缸 径 行 程 / Cylinder diameter stroke 127 * 165mm

气缸数/Number of cylinders 6

每缸气门数/Number of valves per cylinder 4

总排量/Total displacement 12.54L

压缩比/Compression ratio 17:1

最 低 燃 油 消 耗 率 / Minimum fuel consumption rate 185 g/kw ·h

点 火 次 序 / Ignition sequence 1-5-3-6-2-4

排 放 标 准 / Emission standard 国 Ⅴ/ 欧Ⅴ

一米外隔音/Soundproofing one meter away 104 dB

机 油 容 量 / Oil capacity 25-28L

净 质 量 / Net weight 1000Kg

曲轴旋转方向/Crankshaft rotation direction 顺 时 针 Clockwise

外形尺寸(长/宽/高) /Dimension(L*W^H) 1556 817 1094 mm

Gallery

HM13 Truck Engine Series
